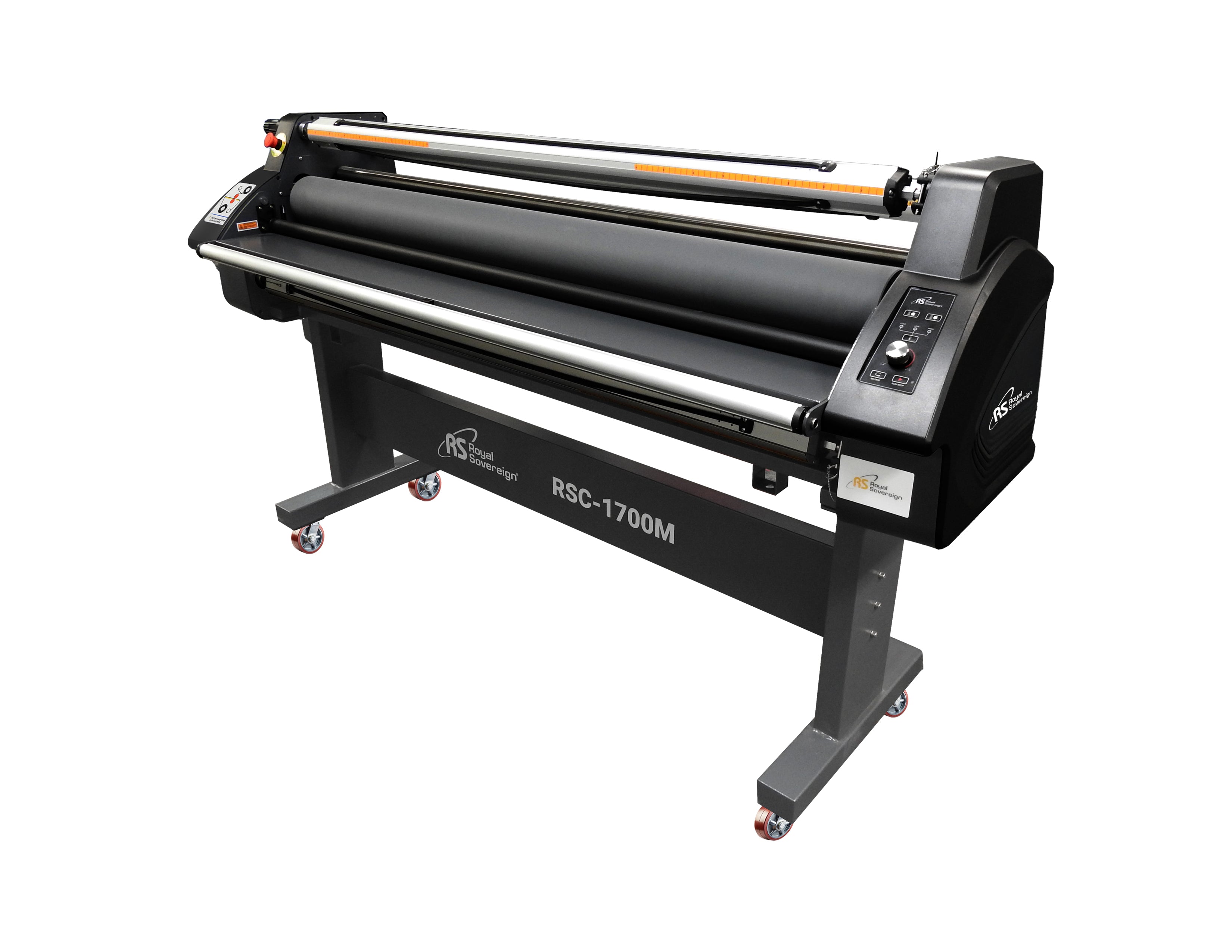

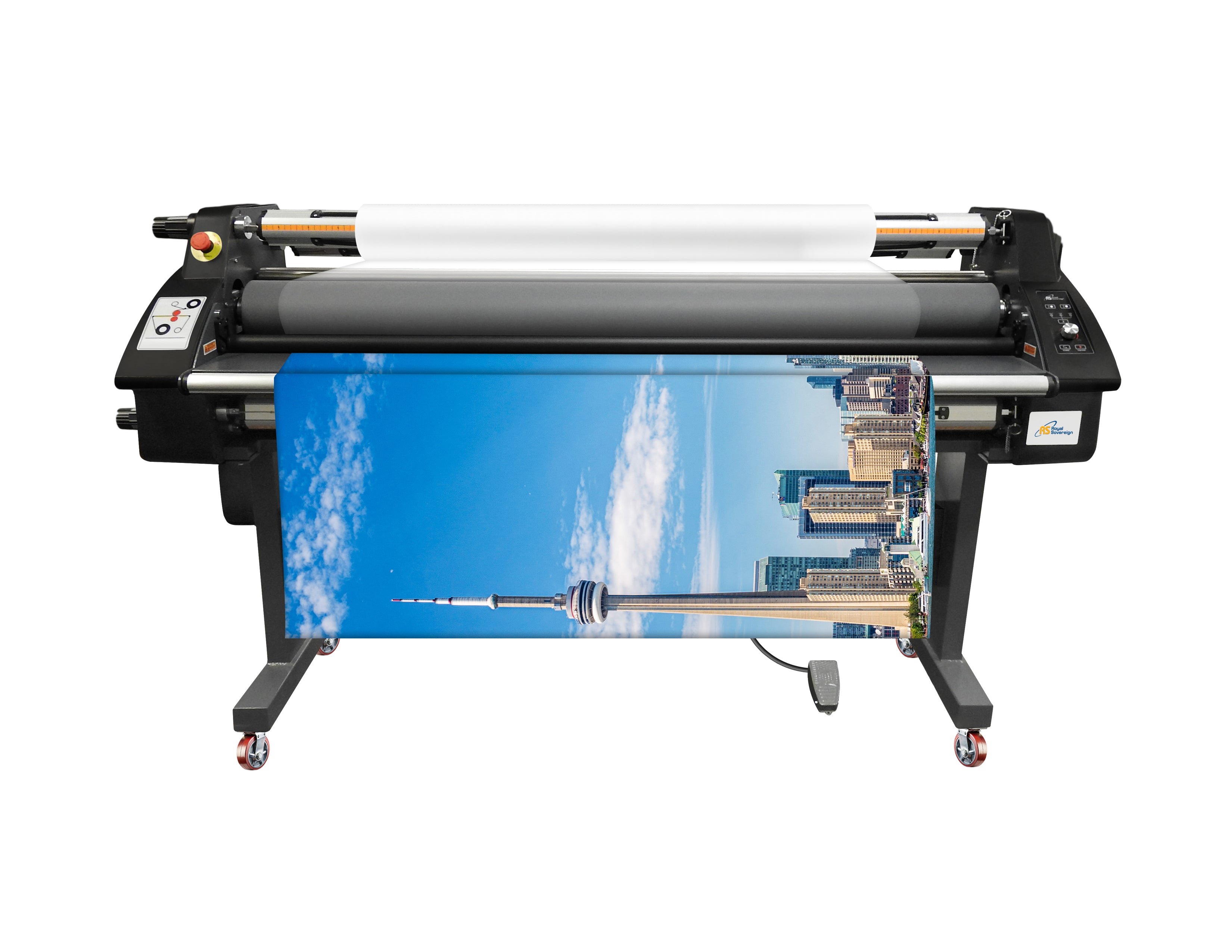

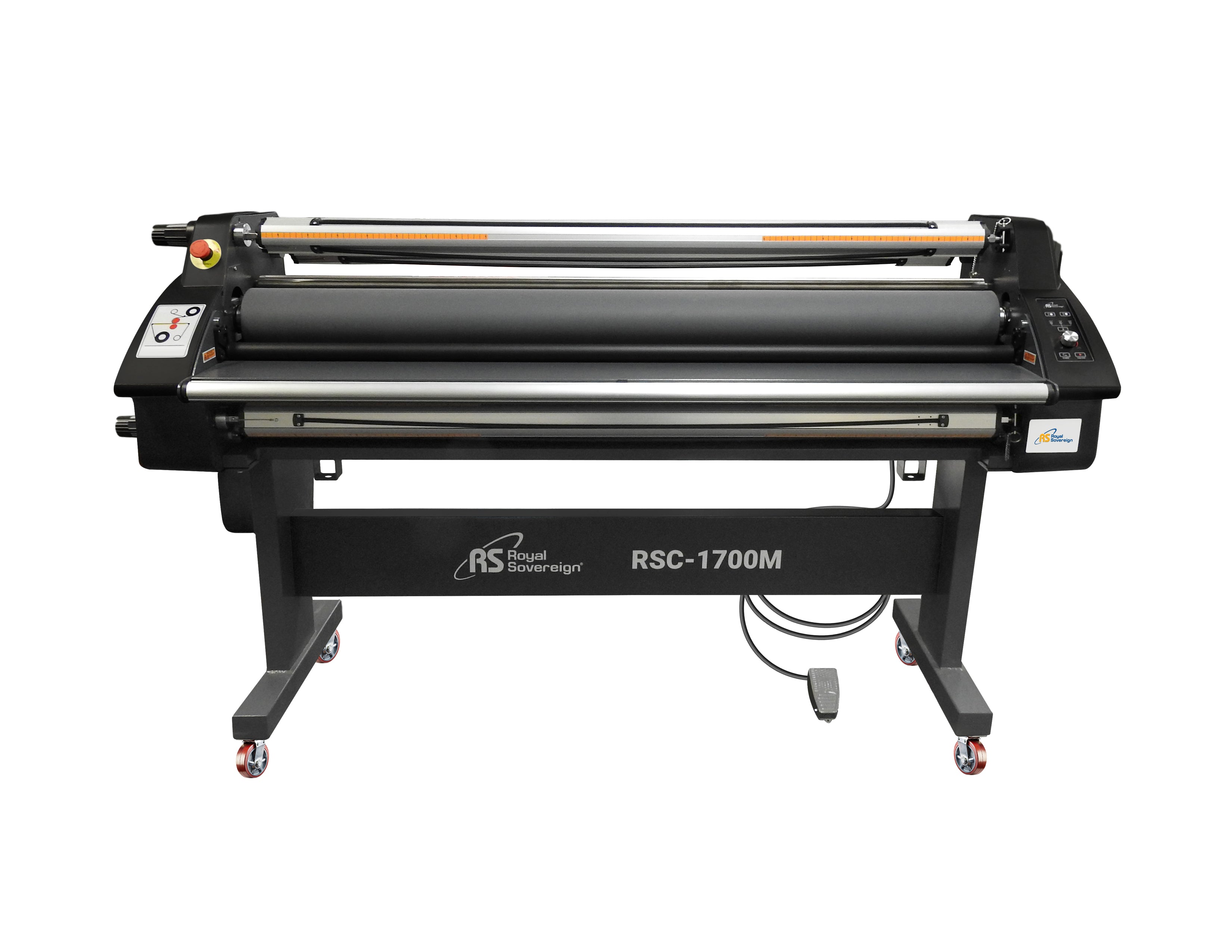

Shipping & Returns policy1600mm Wide Format Roll Laminator (RSC-1700M)
RSC-1700M
$9,339.00
Key Features
- Electronic nip pressure control
- High Grade Silicone Rollers for Consistent Lamination
- Rear Slitters for Inline Print Separation
- Maximum Speed of Just Over 49 ft/min
- Foot Pedal & Rear Remote Included
- Integrated Rear Material Rewinder
- Shaft Bar Roll Media Centering Guides
- Adjustable roller gap to 1 inch
| Specification | RSC-1700M |
|---|---|
| Power Consumption | 1600W |
| Max Laminating Width | 1520mm |
| Film Thickness | 25~500 mic (1~20 mil) |
| Max Laminating Speed | 16 m/min |
| No Backing Paper-Film | Yes |
| Max Temperature Control | 40/60 |
| Mounting Thickness | 25mm |
| Film Core Size | 3" Auto Grip |
| Foot S/W | Yes |
| Safety System | Laser System |
| Roller Diameter | Ø130 |
| Max Film Diameter | Ø150 |
| Unit Dimensions (WxDxH) | 2090 × 655 x 1250mm |
| Carton Dimensions (WxDxH) | 2185 x 746 x 775mm |
| Carton Weight | 190Kg |
| RSC-1700M Sell Sheet | Download Sell Sheet |
|---|---|
| RSC-1700M Manual | Download Manual |
